Recombinant
Anti-TBP Mouse mAb
Catalog Number: PTM-6042
$ 280

Clone Number: 10397

Host: Mouse Clonality: Recombinant Monoclonal

Applications: WB IHC-P FC

Reactivity: Human, Mouse, Rat

Synonyms: GTF2D1, TF2D, TFIID

Product Size
100 μl
Quantity

Shipping: Ambient temperature

Order online or send purchase order to info@ptmbio.com

FAQ Technical Support Protocols

General Information
Isotype IgG2a/kappa
Conjugate Unconjugated
Synonyms GTF2D1, TF2D, TFIID
UniProt ID

P20226

Immunogen
MW (kDa)
Specificity
Product Usage Information
Applications Dilution Recommended Species
WB 1:5000-1:20000 Human
IHC-P 1:50 - 1:100 Human, Mouse, Rat
FC 1:100 - 1:500 Human
Properties
Purity Protein G purified
Constituents PBS, Glycerol, BSA
Storage Store at -20°C. Avoid freeze/thaw cycles.
Stability Stable for 12 months from date of receipt/reconstitution.
Target Information

Background

TBP is a member of a small gene family of TBP-related factors. The first TBP-related factor (TRF/TRF1) was identified in the fruit fly Drosophila, but appears to be fly or insect-specific. TBP is involved in DNA melting (double strand separation) by bending the DNA by 80° (the AT-rich sequence to which it binds facilitates easy melting). The TBP is an unusual protein in that it binds the minor groove using a β sheet. TBP is also important for transcription by RNA polymerase I and RNA polymerase III, and is therefore involved in transcription initiation by all three RNA polymerases.

Cellular location

Nucleus

Images
WB

Blocking buffer: 5% NFDM/TBST
Primary Ab dilution: 1:20000
Primary Ab incubation condition: 2 hours at room temperature
Secondary Ab: Goat Anti-Mouse IgG H&L pAb (HRP Conjugate)
Lysate: 1: HeLa, 2: HEK-293T, 3: HepG2
Protein loading quantity: 20 μg
Exposure time: 60 seconds
Predicted band size: 38 kDa
Observed band size: 45 kDa

IHC-P

Tissue: Human liver cancer
Section type: Formalin-fixed & Paraffin -embedded section
Retrieval method: High temperature and high pressure
Retrieval buffer: Tris/EDTA buffer, pH 9.0
Primary Ab dilution: 1:100
Primary Ab incubation condition: 1 hour at room temperature
Secondary Ab: Anti-Rabbit and Mouse Polymer HRP (Ready to Use)
Counter stain: Hematoxylin (Blue)
Description: The brown color represents the positive signal observed with PTM-6042

Tissue: Human testis
Section type: Formalin-fixed & Paraffin -embedded section
Retrieval method: High temperature and high pressure
Retrieval buffer: Tris/EDTA buffer, pH 9.0
Primary Ab dilution: 1:100
Primary Ab incubation condition: 1 hour at room temperature
Secondary Ab: Anti-Rabbit and Mouse Polymer HRP (Ready to Use)
Counter stain: Hematoxylin (Blue)
Description: The brown color represents the positive signal observed with PTM-6042

Tissue: Mouse kidney
Section type: Formalin-fixed & Paraffin -embedded section
Retrieval method: High temperature and high pressure
Retrieval buffer: Tris/EDTA buffer, pH 9.0
Primary Ab dilution: 1:100
Primary Ab incubation condition: 1 hour at room temperature
Secondary Ab: Anti-Rabbit and Mouse Polymer HRP (Ready to Use)
Counter stain: Hematoxylin (Blue)
Description: The brown color represents the positive signal observed with PTM-6042

Tissue: Rat testis
Section type: Formalin-fixed & Paraffin -embedded section
Retrieval method: High temperature and high pressure
Retrieval buffer: Tris/EDTA buffer, pH 9.0
Primary Ab dilution: 1:100
Primary Ab incubation condition: 1 hour at room temperature
Secondary Ab: Anti-Rabbit and Mouse Polymer HRP (Ready to Use)
Counter stain: Hematoxylin (Blue)
Description: The brown color represents the positive signal observed with PTM-6042

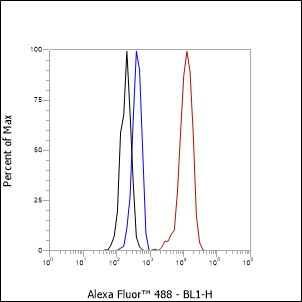

FC

Cell line: HepG2
Fixative: 4% Paraformaldehyde
Permeabilization: 90% Methanol
Primary Ab dilution: 1:500
Secondary Ab: Goat Anti-Mouse IgG
Unlabeled control: Cells without incubation with primary and secondary antibodies (Black line).
Isotype control: Mouse monoclonal IgG2a (Blue line).
Description: Line red is the positive signal for PTM-6042

Research Use

For research use only, not for use in diagnostic procedures.
